Many great people and historians have have done a terrific job gathering resources, facts, and images of the Union terminal over the decades. It is not our intention to recreate the story of the Cincinnati Union Terminal, or assemble the vast resources onto one blog; instead, we aim to acknowledge and share the resources by linking to them and citing who it is while discussing in our blog what we in particular find tremendously important at the Union Terminal, the clocks! The links will open in a new tab and we encourage you to visit these great resources that Cincinnatians and others have created.

James Billiter Illustration of Cincinnati Union Terminal

Who Designed The Union Terminal Clock?

The clock was built by the Seth Thomas Company. But who designed the clock?

The first question I and others had about the CUT clock is "Who Designed It"? We know that the clock was part of the design of the building and that Paul Philippe Cret was hired on by the New York architectural firm to add a new emerging design concept, art deco', to the design of the train station. But was it Paul Cret who drew the design of the clock? Was it a team inside of the architectural firm? Or even one of the other renowned architects? No one seems to mention precisely who drew the design for the Union Terminal Clock itself. I think it may be safe to say it was Paul Philippe Cret who designed the Union Terminal Clockin the aesthetic of his art deco building design. The curves of the flowering dial so similiar to the curved giand half dome.

Resource: Union Terminal Co. hired French-born Philadelphia architect Paul Philippe Cret to advise on aesthetics. A leading architect of the time, he’s believed to have influenced the move away from neoclassical to Art Deco. - https://www.ohiohistory.org/cincinnati-union-terminal
Working with Roland Wank of the New York firm of Alfred T. Fellheimer and Steward Wagner, Philadelphia-based architect Paul Philippe Cret conceived the modern design of the terminal building.
https://sah-archipedia.org/buildings/OH-01-061-0073

Art Deco Clock Part of Original Blueprints

Union Terminal Clock Blueprints of clock and half-dome



Blueprints Tell The Tale

The art deco clock on the exterior front face of the Cincinnati Union Terminal was part of the original art deco design by the New York architecture firm Fellheimer and Wagner, who specialized in train stations.



Union Terminal blueprints image

Fellheimer and Wagner had a team of architects on the design and brought on Paul Philippe Cret specifically to add the Art Deco exterior design to a previously established traditional gothic design.

It is believed that Paul Cret is responsible for the exterior art deco design and he, in our opinion, is the most likely person to be responsible for the design of the Union Terminal Clock.

Clock Manufacturer: Seth Thomas Company in Waltham, Mass.

Union Terminal Architect: Alfred T. Fellheimer & Steward Wagner of Fellheimer and Wagner.

Architectural Project Manager: Roland Anthony Wank of Fellheimer and Wagner.

Architectural Adviser on the exterior appearance of the building: Paul Philippe Cret.

Mural Designers: Winold Reiss and Pierre Bourdelle;

Winold Reiss murals at Union Terminal in Cincinnati



Exterior pilaster relief designs: Maxfield Keck



Designer of the Rookwood Tea Room: William Hentschel



(Credit)

The Union Terminal Clock Specifications

  • Clock face measures 18 feet across
  • Minute hand – 7 feet, 4 inches
  • Hour hand – 6 feet, 4 inches
  • The clock face is composed of 28 amber glass panels of various sizes and 24 red glass panels to demarcate the twelve-hour positions (Indices)
  • The clock face is backlit while the hands are lit by neon tubes outlining them
  • The hands are made out of Aluminum
  • The Clock weighs roughly 5 Tons or 10,000 Pounds!

The Clock was connected to IBM's brilliant time synchronizing mechanism first revealed at the opening of the Union Terminal. That is, no matter who you are or where you were in the Union Terminal, you knew exactly what the station time was for everyone on every clock.

Imagine the chaos otherwise, the office clocks minutes behind the trainman's clock? All of the clocks in the Union Terminal were synced in a brilliant machine looked at in more details here.

In 1933 The Clock Hands Are "Skeletonized"

Below is an image from 1933 of The Union Terminal Clock showing that the hands are see-through, aka "skeletonized". Only the frame of the hands comprises the hands. We have been told in unconfirmed reports that the clock after the restoration will again have Skeletonized hands in 2018. We shall see! (UPDATE! Yes, the Union Terminal clock now has skeletonized hands, a return to their original form. Prior to 2018 (CONFIRM DATE), they had a white background between the steel that helped project the light from the neon tubes on the minute and hour hands.

Union Terminal Clock in 1933 with skeleton hands

The 2018 Restoration of the Clock.

The Verdin Clock Co was trusted with the restoration of the Union Terminal Clock. Verdin has been operating our of Cincinnati since 1842. The 52 glass panels and the large iconic aluminum hands were taken down and replaced with white material to support the metal frame of the clock dial while the glass, and metal dial framework, are being cleaned.

"Why is the Union Terminal Clock Missing?" Article on WVXU.

Union Terminal Clock Restoration in 2018



Below is a picture of The Union Terminal Clock Hands At Verdin in Cincinnati being cleaned during the 2018 restoration.

Union Clock Tower Hands During Renovation by Verdin in Cincinnati, Ohio

Union Clock Tower Hands During Renovation by Verdin in Cincinnati, Ohio



In the May 2018 update of the Union Terminal restoration the video shares a brief close-up of the clock with the clock face removed, a worker for scale, and the internal gear mechanism being reinstalled.



The "New" Verdin Company factory on Eastern Avenue in Cincinnati, Ohio. Look through the windows the next time you are passing by, you'll never know what you may see standing up in there!

Verdin Clock and Bells factory in Cincinnati Ohio

Below you see the Cincinnati Union Terminal's clock hands after NeonWorks Of Cincinnati installed the signature neon outline on the hour and minute hands during the July 2018 clock restoration.

Union Terminal Clock hands being restored in 2018

The hands will now go back to Cincinnati's Verdin company where they will be balanced and finished. Neonworks of Cincinnati used The American Sign Museum's workshop for the repair of the hands.

A Change To The Look of The Clock is Coming.

We have been told by Neonworks Of Cincinnati that the hands are to be returned to their original "skeletonized" version, or see through.

If this is correct then the hands will not have white in the middle of the hands but instead will be see-through, only the aluminum frame of the hands outlined in neon light will be part of the hands.

(Update. Indeed the clock was released with the skeletonized hands. Will they one day be updated?)

At some point in the history of the clock white, possibly aluminum?, plates were added to the center sections of the hands making them more visible. Neon tubes were added to the perimeter of the hands; together they gave the impression from afar that the clock hands were red-orange.



Neonworks Of Cincinnati working on replacing the neon tubes on the clock's hands. Picture was taken at the American Sign Museum's workshop.

https://www.cincymuseum.org/un...



The Union Terminal Watch



When Cincinnatian Rick Bell designed The Union Terminal Watch, he made great efforts to ensure the hands were the correct color, look, and shape of the hands of the CUT clock.  He made a great effort to ensure to include the white circle second-hand cap.

Two variations of the Cincinnati Watch dial were presented to the Union Terminal President, Elizabeth Pierce, and the watch you see is the version selected. (There is only one of the version not chosen, Rick has it :)

The Union Terminal holds special meaning to all Cincinnatians, especially with Mark Stegman, one of the co-owners of Cincinnati Watch Co. His Grandfather, Joe Haworth, and his Great Grandfather "Timer", worked at the Union Terminal from close to it's opening till 1955.

Joe Haworth said that the best seat in the house for Cincinnati Reds Opening Day at Crosley Field was from "Sitting on top of the Union Terminal clock".

Cincinnati Watch Company is honored to give to the Cincinnati Museum Center at Union Terminal with every purchase of a Union Terminal Watch.

How the Union Terminal clock works:

Essentially: the clock uses weights, gears, and a regulator to create a power device called a movement to power the clock and regulate the release of the energy in time.

Originally, tower clocks would use hand wound power to wind and lift a weight into the air. The constant pull of the weight powered the clock. Today, electricity is used to engage a motor every thirty (30) minutes to pull a heavy-weight up. The weight is pulled down by the force of gravity, which is the force turning the gears.

A ticking escapement keeps the weight from unwinding in nearly perfect time. The clock's minute-hand ticks a half minute, once every 30 seconds. Two "clicks" a minute. Seeing the Union Terminal clock's movement kick on is amazing. This video is the one we took.


https://youtu.be/vGeWs5BFAek



A video of the clock by the CMC





Cincinnati Union Terminal Clock Resources

Historical photos of the Union Terminal exterior

Below are links to a two-part blog post detailing a tour of above the rotunda, the Clock and going behind the scenes at CUT.

2013 Blog Focused on Art Deco design of the CUT.

https://www.ohiohistory.org/le...

Questions We Still Have:



Who was the 1989 donor who got the clock going again with their own private time and money?

What year did the hands on the clock get fixed with neon and have the space between the hands filled in with white?

What will the clock look like when Verdin completes the restoration? Stay tuned because The Cincinnati Watch Company has just been invited to tour the Verdin clock company and see firsthand what the Union Terminal Clock is going to look like!
Update coming soon.

 <hr>

5 Years Later...

Update: Sooo, 5 years later, the Union Terminal has been renovated.

There was a great ball to celebrate the renovation.

The clock hands are now skeletonized, with the neon tubes affixed above the steel outline of the clock hands. On the dial the red indices where there was a light shining backwards and radiantly reflected behind red glass, is now rows of LED's lighting the red glass directly.  All of the glass plates on clock face have been cleaned or replaced, two were broken

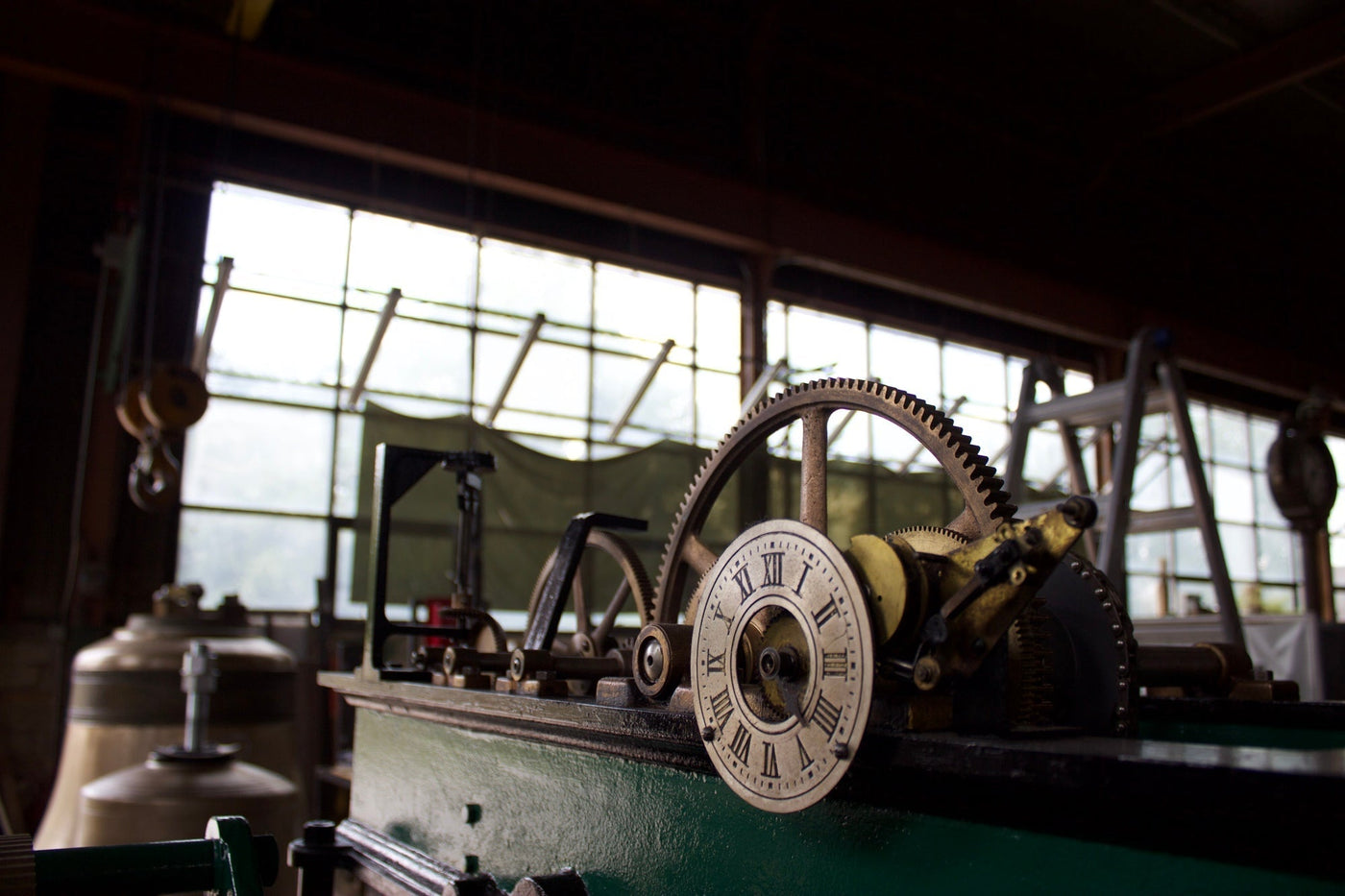

Most importantly, the clock movement was cleaned and restored by VERDIN Clock and Bells. We were provided a tour of Verdin while the clock was being restored and it was amazing of course. Thank you Tim.



 The clock was part of a system built by IBM in 1933 that kept all of the clocks on the entire 400 acres at the same time! More on that can be found here.
